Product Description

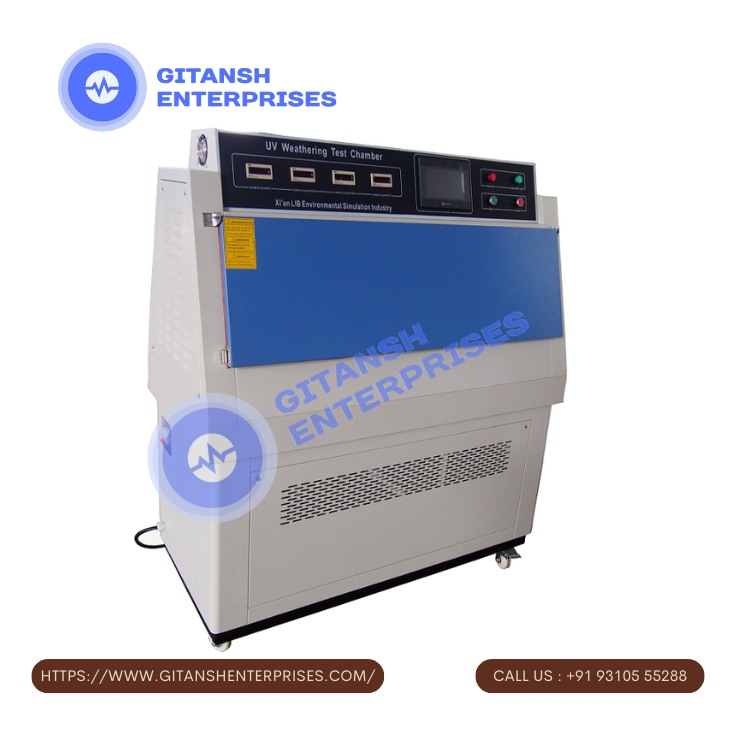

In UV ageing test chambers ultraviolet radiation is created by UV lamps, dew and rain impact are created by forced condensation and heat is generated by heating elements. UV lamps are available UVA (340nm) or UVB (313nm) as per test requirement. For water spray, there are nozzles that work with motor pump. Controlling function is completely programmable; for this purpose we use 7 inch color screen controller. It allows you to do settings of temperature, light and water spray test along with time. Overall construction is made of stainless steel 304. In order to keep samples, there is a perforated tray, which is height adjustable. In addition to standard model of UV Test Chamber, we also make customized chamber to meet speci?c requirement of customer. We carefully design each UV Weather Resistance Test Chamber to let you experience trouble free working performance.
Product Information
| INNER SIZE | 1170x 500x 500mm |
| EXTERNAL SIZE | 1350X 600x 1560mm |
| TEMPERATURE RANGE | Ambient +10°C to 70°C |
| TEMPERATURE UNIFORMITY | ±1°C |
| TEMPERATURE FLUCTUATION | +0.5°C |
| TESTING TIME | 0to 999Hours |
| CONSTRUCTION | Stainless steel 304 |
| HUMIDITY RANGE | >90%RH |
| CONTROLLER | 7″color touch screen controller ,Programmable temp ,humidity ,UV &time ,In -built data recording w /USB port |
| UV LAMP POWER | 40W/per lamp |
| TEST CYCLE SETTING | Illumination ,condensation and water spray test cycle is programmable |
| IRRADIANCE | 1.1W/cm2 |
| ULTRAVIOLET LIGHT | UV -A :315-400nmOR UV -B :280-315nm,8pcs,1300hlifetime ,length :120cm ,ATLAS or PHILIPS make |
| DISTANCE BETWEEN LAMPS | 70mm |
| DISTANCE FROM SAMPLES TO LAMP | 50+2mm(adjustable ) |
| STANDARD SPECIMEN SIZE | 75x150mmor 75x290mm |
| WATER SPRAY | Nozzles w /motor pump |
| POWER SUPPLY | 220Volts 50Hz |
| AIR CIRCULATION | Blower assembly with duct Overload short circuit protection ,Over temperature protection , |
| PROTECTION SYSTEM | Water lack protection ,Earth leakage protection ,Auto shut off protection ,UV light off when door open |
