Product Description

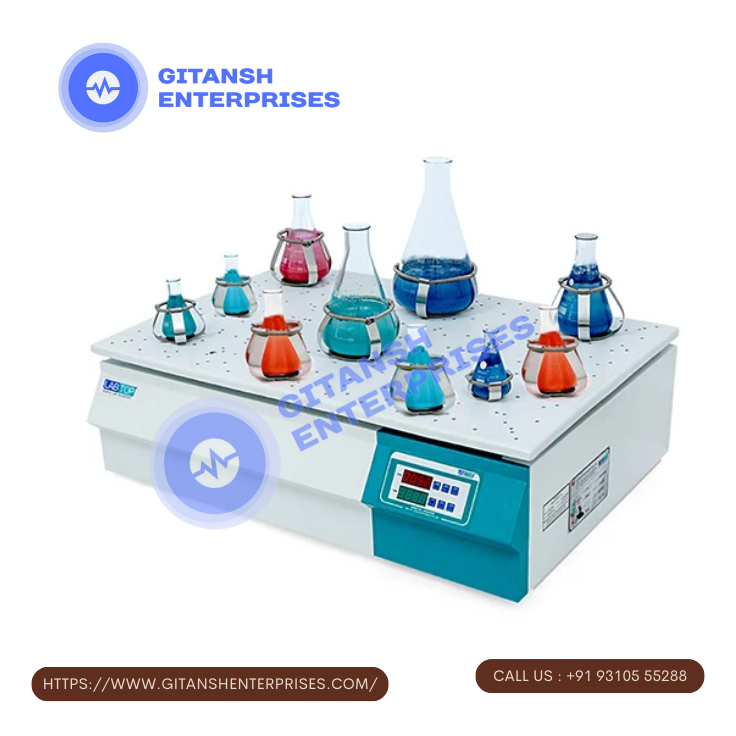

Single Tier Orbital Shakers consist of heavy duty mild steel fabricated housing comprising of a
brushless induction motor and variable frequency drive, these shakers has a universal platform with a provision of flask holders for various flask capacities. These orbital shakers are available in 7 different models based on number of flask holding capacity and speed.
- Universal Platform to accommodate for conical flasks , round bottom flask, volumetric flask and test tube rack
- Adjustable levelling Jack
- 5 programs memory
- Forward and backward rotation programs
- Auto restart at set rpm when power resume.
- 365 days Continuous operation
- Maintenance free Brushless Induction Motor
- Permanently lubricated bearing for noise less operation
- Eccentric counter balanced drive mechanism for uniform mixing
Product Information
| Technical Specifications | ||||
| CAT. No. | LOS-60 | LOS-90 | LOS-120 | LOS-150 |
| Control | Programmable Logic Control (PLC) | |||
| Display | 4.3” HMI with Colour Display and touch screen | |||
| Shaking motion | Orbital | |||
| Amplitude (mm) | Ø50 | |||
| MOC of Shaking platform | Aluminium Powder Coated | |||
| Timer ( hrs) | 1-999 | |||
| Speed (rpm) | 30 – 350 | 30 – 300 | 30-250 | |
| Accuracy (rpm) | ± 5 | |||
| Platform size (mm) | 620×620 | 900×620 | 1240×620 | 1540×900 |
| Outer dimension (mm) | 630x670x310 | 920x670x310 | 1240x760x380 | 1540x1040x380 |
| Platform | Universal | |||
| Weight (kg) | 75 | 80 | 90 | 200 |
| Input Voltage | 230 VAC / 50 Hz | |||
| Construction | Mild Steel powder coated | |||
