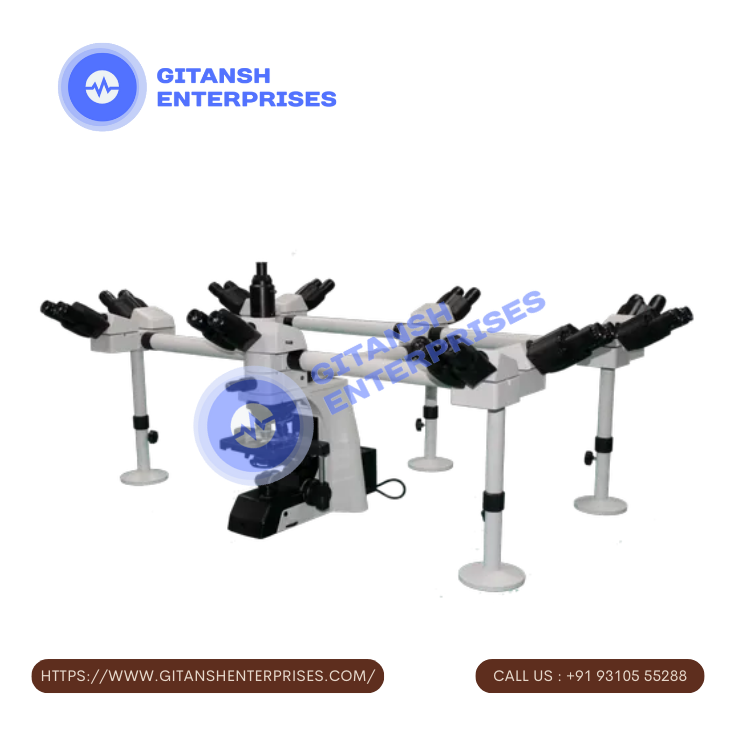

PX-10i Penta Head Biological Microscope

Description

Product Description

Multi-viewing demonstration biological microscope is designed for several people to observe one specimen together at the same time. It has infinity imaging system, high light intensity illumination system, sharp & clear image and consistent image in observation. Particularly it is suitable for discussion application in Clinic, Research and education. It supplies bigger space for an observer that brings more comfortable in working.

The microscope is equipped with LED cursor to indicate image in the viewing field, the cursor is arrow type with light intensity adjustable button. The cursor can be mover freely; any position of the image can be indicated.

Product Information

Optical system Infinite Optical System
Viewing head Compensation Free Trinocular Head Inclined at 30° ( 50mm-70mm )
trinocular =100:0/20:80/0:100.
4-Binocular head, interpupillary distance adjustable 50mm-75mm
9-Binocular head, interpupillary distance adjustable 50mm-75mm
Eyepiece Plan WF10X/22mm
Objective IOX series infinity plan objective  4X0.10 ? 10X/0.25? 40X/0.65? 100X/1.25 Oil
Nosepiece Quintuple Nosepiece, Inward ball bearing type
Middle module Middle module with LED cursor ,three colors red /green /blue for option ,intensity adjustable .
Stage X-axis rackless Double layers mechanical stage
stage size : 190mmx 160mm
Moving range: 80mmx 50mm
Focusing Kohler illumination with aperture iris diaphragm and field iris diaphragm
Halogen Bulb 12V/100W, AC85V-230V
brightness adjustable
Indicator LED cursor brightness adjustable
Certifications European Ce, ISO:9001 ISO:13485, USFDA
Optional Acessory Eyepiece WF15X/17mm,WF20X/12.5mm
infinity plan objective 20X0.40,60X/0.85
infinity semi-plan objective 4X0.10 ? 10X/0.25? 20X/0.40? 40X/0.65? 60X/0.85? 100X/1.25 Oil
Photography attachment and CCD C-mount:0.5X?0.57X?0.75X
1.3Mega?2.0Mega?3.0Mega?5.0Mega?10.0Mega
CMOS Digital camera eyepiece
HDMI 1080 and HDMI720p cameras
Image analysis software
