Product Description

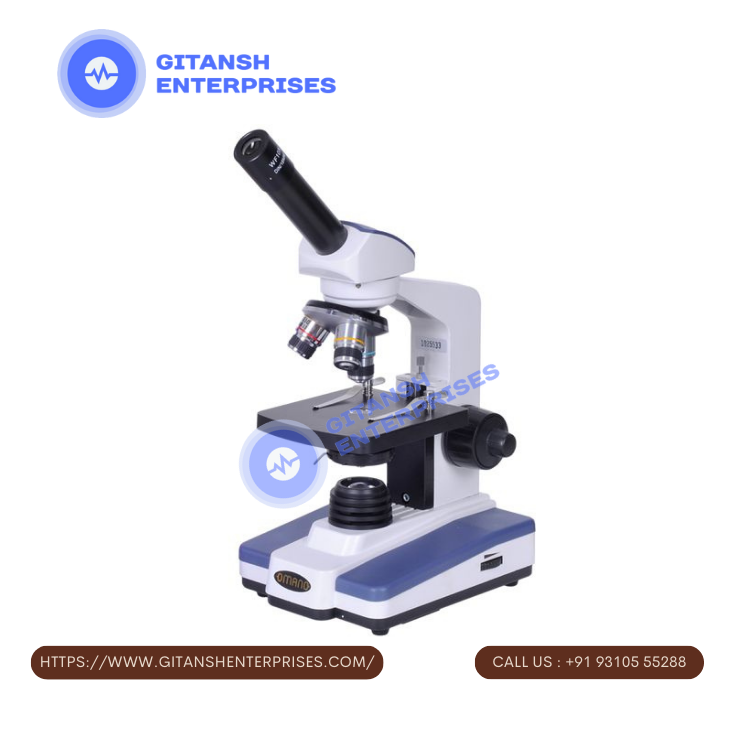

These IM-01 Microscope is used for academics students to perform or anaylze and research. These helped many students to know about the microbiological and cultural cells and other vitals processes. The sldies on the mechanical stage is used to observe the cells , other microtiny things that users can foundout and Take a step towards their sucess. The microscope is about 4kg Medium weight of the microscope. The diaphagram that is rotatable through these users can change the settings as per there requirements.
Product Information
                                        Technical specifications
| Main body | Our ergonomically designed, aluminium dia casted sturdy body |
| Viewing | 360° rotatable & 45° inclined monocular head having hard coated prism. |
| Objective | Anti-fungal & anti reflection coated 4x, 10x 40x & 100x oil immersion semi-plan achro din objective, fully brass made with great design. |
| Focusing | Separate coarse & highly sensitive graduated fine focussing knobs. |
| Light source | High quality led illumination & smps based 100v-220v wide voltage range. |
| Eye-pieces | Anti-fungal & anti -reflection coated 10x wide-field & 15x wide-field eye-pieces with positive stop clicks. |
| Stage | Graduated rectangular brass made mechanical stage with co-axial movement. |
| Nosepiece | Outward quadruple brass made nosepiece. |
| Magnification setting | 8 magnification setting: 40x, 60x, 100x, 150x, 400x, 600x, 1000x & 1500x |
| Condenser | Aluminium made abbe 1.25 na type condenser with copper iris diaphragm & swing in-swing out filter holder. |
| Packing & accessories | In box content-main body, monocular viewing head, 4 objectives, 2 eye-pieces, dust cover, cleaning cloth, immersion oil, power cable with 50 blank slides & cover -slips. Packed in styrofoam box & card board box with instruction manual.. |
