Description

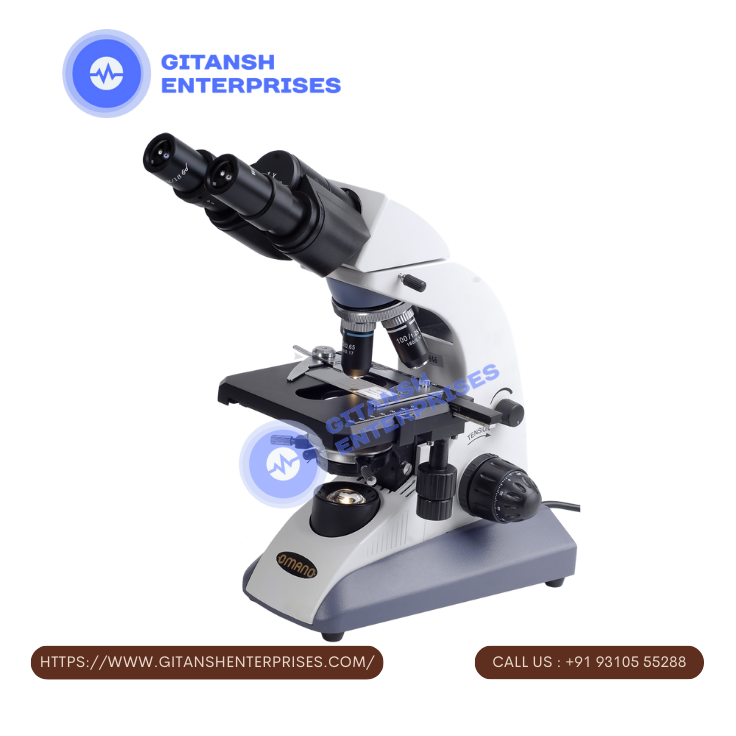

45º inclined with 360 degree rotatable binocular tube, co-axial built in Mechanical stage with fine vernier graduation, designed with convenient coaxial adjustment, for Jerk free smooth slide manipulation through 50 X 75 mm, Dust proof quadruple/quintuple ball bearing revolving nose piece with positive click stops, Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm
Product Information
Technical specifications
| Main body | Our ergonomically designed, aluminium via casted sturdy body. |
| Viewing | 360° rotatable & 45° inclined binocular head having hard coated prism & graduated diopter setting for eye-piece. |
| Objective | Anti-fungal & anti reflection coated 4x, 10x 40x & 100x oil immersion semi-plan achro din objective, fully brass made with great design. |
| Focusing | Separate coarse & highly sensitive graduated fine focussing knobs. |
| Light source | High quality led illumination & smps based 100v-220v wide voltage range. |
| Eye-pieces | Anti-fungal & anti -reflection coated 10x wide-field & 15x wide-field eye-pieces pairs. |
| Stage | Graduated rectangular brass made mechanical stage with co-axial movement |
| Nosepiece | Outward quadruple brass made nosepiece with positive clicks. |
| Magnification setting | 8 magnification setting: 40x, 60x, 100x, 150x, 400x, 600x, 1000x & 1500x |
| Condenser | Aluminium made abbe 1.25 na type condenser with copper iris diaphragm & swing in-swing out filter holder |
| Packing & accessories | In box content-main body, binocular viewing head, 4 objectives, eye-pieces, dust cover, cleaning cloth, immersion oil, power cable with 50 blank slides & cover -slips. Packed in styrofoam box & card board box with instruction manual. |
