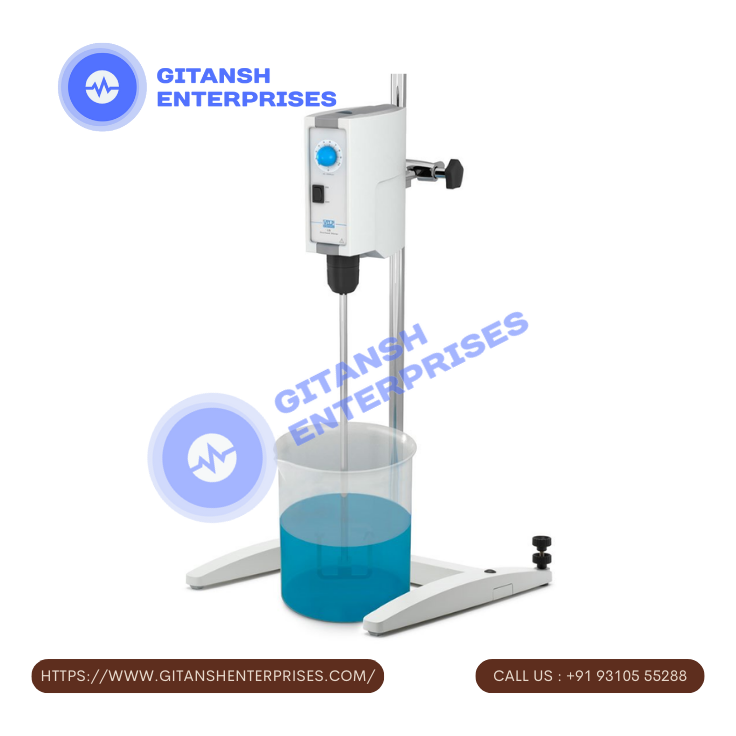

Product Description
- Brushless DC motor for quiet operation and maintenance-free long operation
- Microprocessor controlled for maintenance of accuracy even with viscous liquid
- Viscosity up to 70,000 mPas & 100 L volume
- Adjustable speed ranging from 60 Up to 2000 RPM
- Long timer setting from 1 min to 99 hours 59 mins & continuous mode
- With reversible mixing motion – CW/CCW
- Large digital display for all the parameters at one glance
- Uninterrupted operation through Smart control
- Safety cut for overload, over current & over-temperature – safety cut
Product Information
| Specifications | EOHS-125 LITE | EOHS-150 LITE | EOHS-200 LITE |
| Motor Type | Brushless DC | Brushless DC | Brushless DC |
| Capacity | 50 L | 75 L | 100 L |
| Speed Range | 60-2000 RPM | 60-2000 RPM | 60-1300 RPM |
| Torque | 50 Ncm | 75 Ncm | 100 Ncm |
| Viscosity | 30,000 mPas | 50,000 mPas | 70,000 mPas |
| Timer | 1 min to 99 hr 59 mins & infinity mode | 1 min to 99 hr 59 mins & infinity mode | 1 min to 99 hr 59 mins & infinity mode |
| Direction of Rotation | Reversible – CW/CCW | Reversible – CW/CCW | Reversible – CW/CCW |
| Protection Class | IP 42 | IP 42 | IP 42 |
| Dimension(Head) | 102x 249 x 242mm | 102x 249 x 242mm | 102x 249 x 242mm |
| Weight | 5.1 kgs | 5.1 kgs | 5.1 kgs |
