Product Description

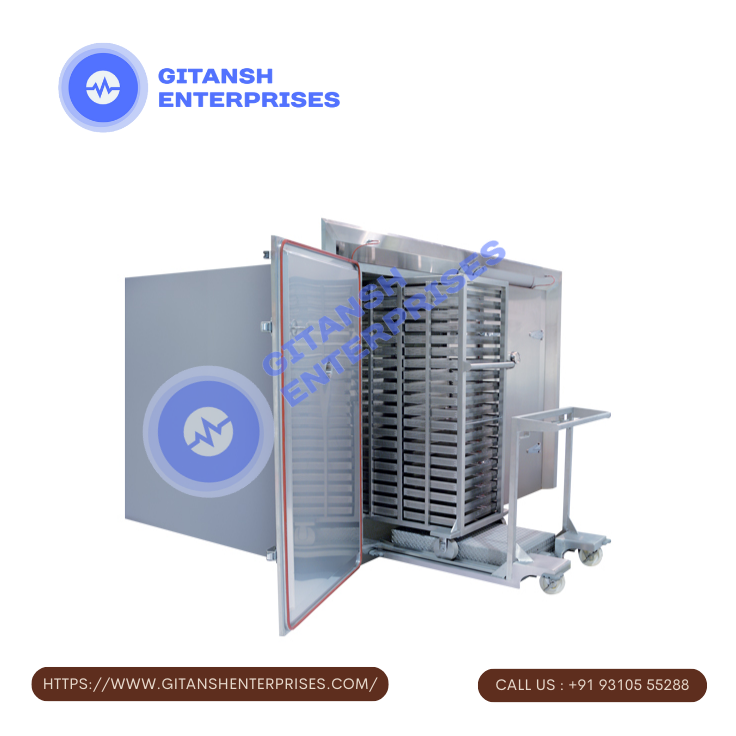

Tray dryer or tray drying oven is widely used in laboratories, food, chemical and spices industries to remove moisture content from final product. As the name states, trays are important part of these machines, samples are put in trays, loaded on trolley and then dried under heated chamber under different temperatures such as 100°C, 160°C, 250°C etc. in presence air circulation.
We are tray dryer manufacturers and suppliers in India. We make electric tray dryers for laboratory use and production scale for food and spices processing and drying tea leaves. These tray drying machines are available in 12, 24, 48, 96 up to 200 tray capacities. In order to minimize drying cost and time; it is ensured that there should be efficient air velocity between trays and gap between trays should be uniform. Large sizes are also made on request and sold at highly competitive price in India.
Our standard air tray dyers are made with stainless steel trays (perforated or non-perforated) and insulated with ceramic wool for reducing heat loss and fitted with motor blowers and temperature control system.
Product Information
| NO. OF TRAYS | 6-96 |
| TRAY SIZE | 16″ (L) X 32″ (W) X 1.25″ (H) |
| TRAY MOC | Ss304 / SS316 / SS316L |
| INNER CONSTRUCTION | Ss304/SS316/SS316L |
| OUTER CONSTRUCTION | Powder coated MS/SS304/SS316/SS316L |
| INSULATION | Glass wool |
| AIR CIRCULATION | Motor driven blower |
| TEMPERATURE RANGE | 50°C to 200°C, 250°C and 300°C |
| TEMPERATURE CONTROLLER | PID temperature controller, Display of SV & PV |
| TEMPERATURE SENSOR | PT-100 |
| HEATER | U shape air heaters |
| SAFETY | Over temperature safety thermostat |
| POWER SUPPLY | 220 / 440 Volts 50 Hz (Single or Three Phase) |
| ACCESSORIES | Loading trolley with wheels, Digital timer, RS232 computer interface, PLC based HMI controller |
